JYQD-V7.5E BLDC Motor Driver 36-72VDC 500W with PWM Control

المنتجات

مضخات مخصصة

اتصل بنا

Mr. Amigo Deng

amigodeng@czowo.com

86-189-94777701

اتصل الآن

JYQD-V7.5E BLDC Motor Driver 36-72VDC 500W with PWM Control

الـ MOQ:	1
السعر:	$8.90-10.90

تفاصيل المعلومات

وصف المنتج

معلومات مفصلة

مكان المنشأ

جيانغسو ، الصين

اسم العلامة التجارية

Bextremeshell

رقم الموديل

JYQD-V7.5E

جهد المدخلات:

36-72 فولت تيار مستمر

القوة المقدرة:

أقصى قوة:

الحد الأقصى الحالي:

خوارزمية التحكم:

الموجة المربعة

أبعاد:

63 مم × 42.5 مم × 33 مم

التحكم في السرعة:

PWM/0-5V

ردود الفعل السريعة:

درجة حرارة العمل:

-10 إلى 60

تردد PWM:

1K-20KHz

دورة عمل PWM:

0-100 ٪

سعة PWM:

مسافة ميناء التحكم:

2.54mm

مسافة ميناء الطاقة:

3.96 ملم

نوع المحرك:

قاعة مستشعر محرك

إبراز:

500W BLDC motor driver with PWM,36-72VDC BLDC driver board,PWM control BLDC motor driver

36-72VDC BLDC driver board

PWM control BLDC motor driver

وصف المنتج

JYQD-V7.5E BLDC Motor Driver

36-72VDC input, max 500W power, with PWM control, Arduino compatible

Attribute	Value
Accessory Type	Motor driver
For Use With	BLDC motor

BLDC Motor Driver Major Parameters

Model No.: JYQD-V7.5E

Power Input: 36-72VDC

Rated power: 350W

Suitability: Hall sensor motor

Max power: 500W

Max current: 15A

Protection: Over-current, short circuit, over voltage, under voltage, locked rotor, over-heating

Control algorithms: Square wave

Dimensions: 63mm × 42.5mm × 33mm

Speed Control: PWM/0-5V

Speed feedback signal output: Yes

Working temp: -10℃ to 60℃

BLDC Motor Driver Applications

The JYQD-V7.5E BLDC motor driver board is a direct current brushless driver board designed to control DC brushless motors with precise speed regulation from 0 to 100%. Its square wave control algorithms ensure stability and accuracy, making it suitable for various applications.

Electric skateboard

Electric scooter

Electric wheelchair

Hoverboard

Drones

Electric unicycle

Electric Moped

Electric go kart

RC car

Industrial robot

Logistics conveyor belt

Automation equipment

CNC machines

Self-propelled lawn mowers

Consumer electronics

Home appliances

Industrial equipment

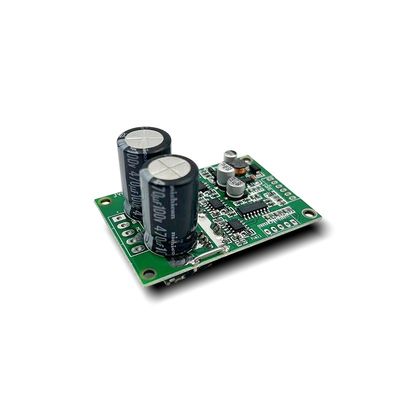

BLDC Motor Driver Appearance

Application Guidelines

Confirm that the voltage and power parameters of the motor do not exceed the specified range.
Applicable to hall brushless DC motor with Hall at 120°. You may need to adjust Hall line sequence or motor three-phase line sequence for optimal driving effect.
This driver board comes without housing and heatsink. It can drive motors below 100 watt without heatsink but requires normal ventilation.
The 5V output port is only for external potentiometer or switch for speed adjustment, commutation and enabling operation. Do not connect external power equipment.

BLDC Motor Driver Wiring

1. Control Port

5V - Driver board internal output voltage for external potentiometer or switch
Z/F - Rotating direction control (5V=Forward, GND=Reverse)
VR - Speed control port (0.1V-5V analog or PWM 1K-20KHz, 5V amplitude)
EL - Enable port (5V=Run, GND=Stop)
Signal - Speed pulse signal output
GND - Driver board internal control ground

2. Power Port

MA - Motor phase A
MB - Motor phase B
MC - Motor phase C
P- - DC negative
P+ - DC positive

3. Hall Sensor Port

Ha - Hall a
Hb - Hall b
Hc - Hall c
GND - Ground
5V - 5V output

Important Notes: Use shielded wires if distance between driver and motor exceeds 50cm. Control port pitch: 2.54mm, Power port pitch: 3.96mm. Ensure proper insulation between driver MOSFET and heatsink/installation plate.

BLDC Motor Driver's Size

Manufacturing Technique

Packing Information

The BLDC motor driver is well packed in an individual antistatic bag.

FAQ

What's the lead time?

Sample: 5 days
Mass order: 2-3 weeks

What's the MOQ?

1 set for all series products

What's the warranty?

12 months from the date of delivery

How is the technical support?

We offer 1-on-1 service & technical support
